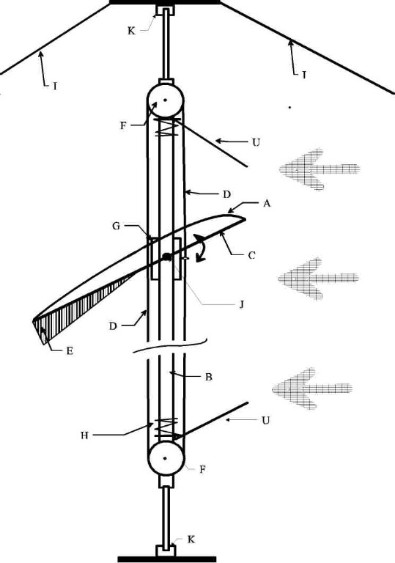

Concept 3: An aerodyne running up and down on a mast The aerodyne in form for instance of a flat plate, an airfoil or a sail, mounted into a frame, is attached on a mast by ropes, runs upward with positive angle of attack, downward with negative angle and produces energy in both phases, as it does in concept 2. A rudder aligns the aerodyne into the wind direction. Several solutions are feasible. One with a sail, which can curve upward and down forming a profile similar to an airfoil, has been designed and tested in several versions. The fig. 5 shows the schematic design, fig 6 to 9 some of the practically built up versions. | _________________________________________________________ Fig 5 A: sail; B: rotating mast; C: sail frame; D: chain or belt; E: vertical rudder; F: bobbins; G: trolley; H: springs; I: anchoring ropes; J: frame axis; K: revolving joints of the mast; U: rods to tilt the frame up and down | | | | | | _______________________________________________________________________________________________________
|
|
|
